WF200 Wheel Finishing Machine Australia | Heavy Duty & Compact Design

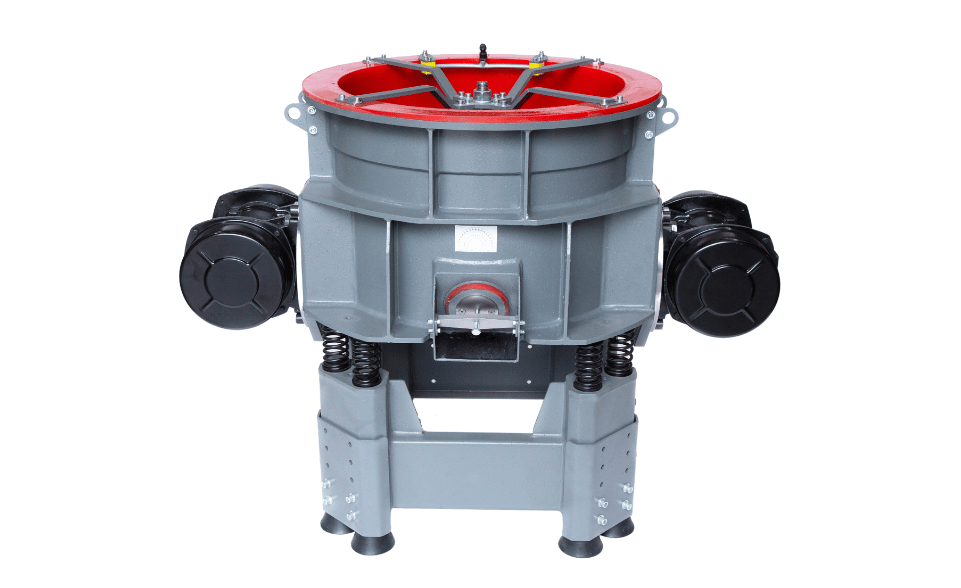

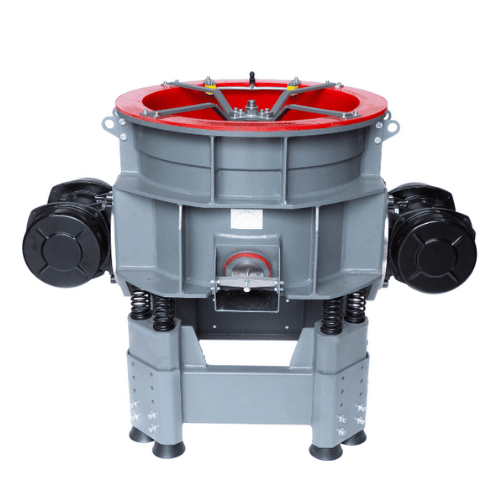

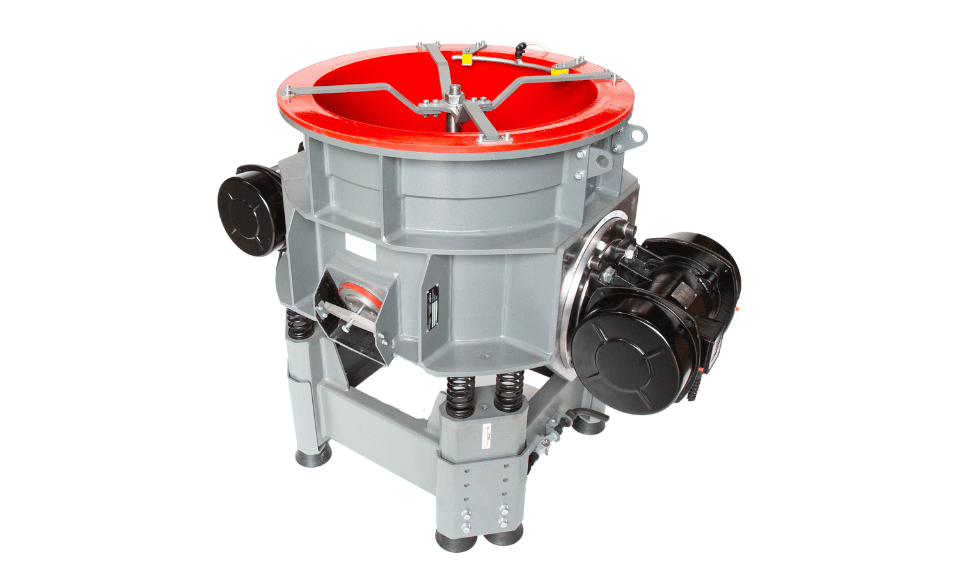

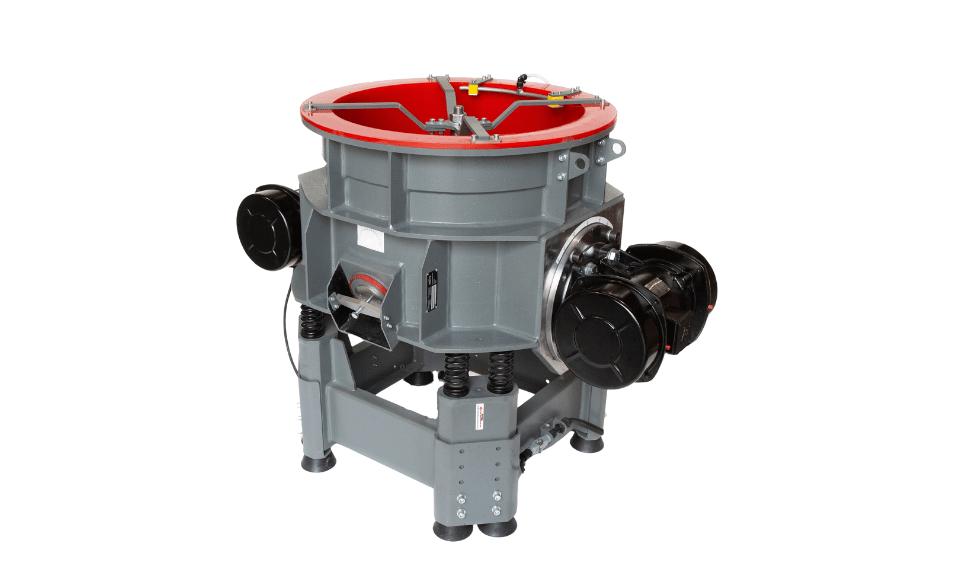

The WF200 wheel finishing machine is a dedicated centreless vibratory system for achieving a highly polished finishes on automotive wheels. The compact wheel finishing system is ideally suited for surface grinding, smoothing and polishing small batches of high-value automotive wheels with a diameter of up to 22″. Easy operation and quick media change capabilities help produce a repeatable mirror finish within a 6 hour cycle.

Ceramic

Wheel Polishing

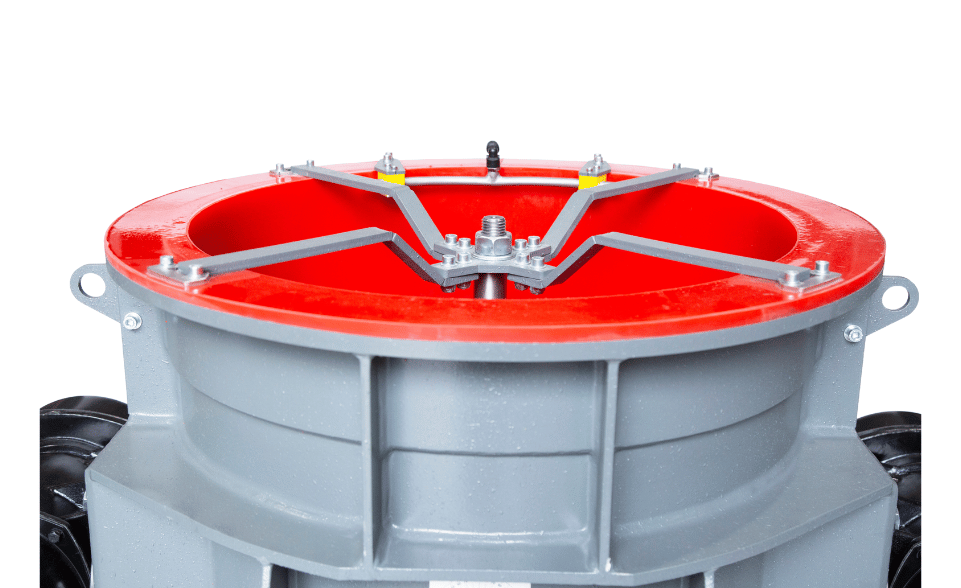

Heavy duty steel fabrication lined with highly wear resistant, hot cured polyurethane nominally 25 mm in thickness. Specially designed, heavy duty vibratory motors with a maximum speed of 3000 rpm and infinitely adjustable amplitude.

Previous image

Next image

Previous image

Next image

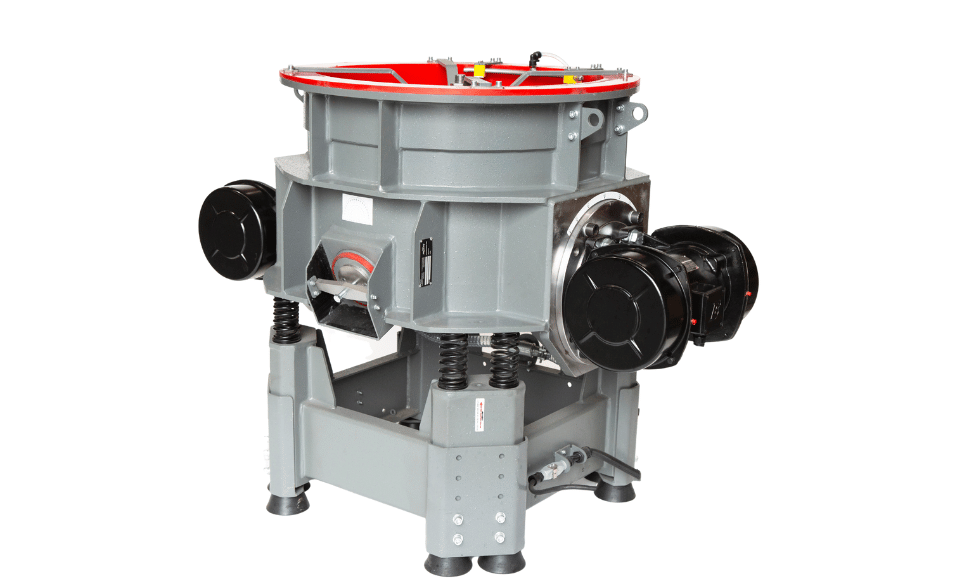

WF Series

Features

Wear resistant polyurethane lining
Compact design
Standard control panel to control machine functions including isolator
Speed control
Drive system with sealed bearings for maintenance-free running

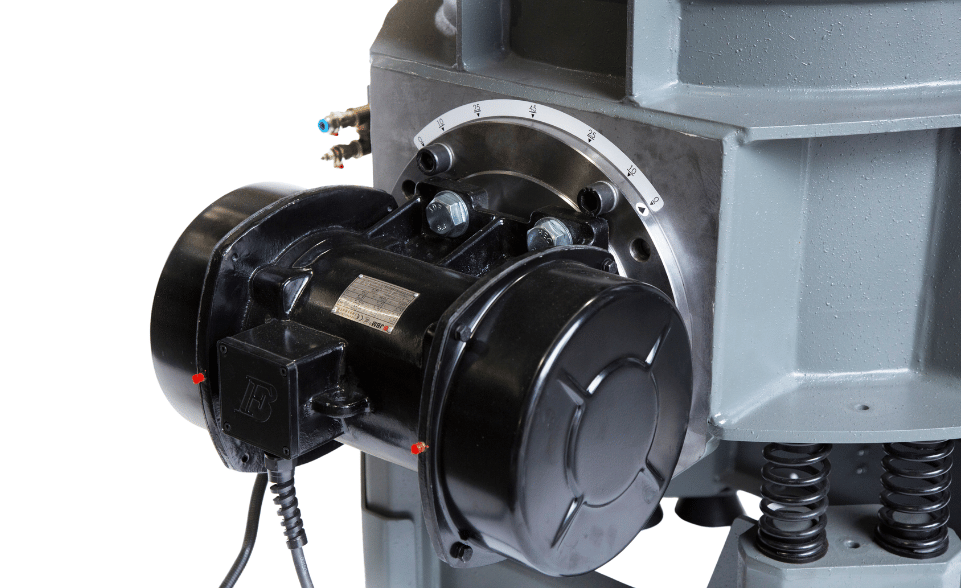

2 x 3000 RPM foot mount vibratory motors
Adjustable motor plates for action variation
Heavy duty steel tub fabrication

Technical

Specifications

Footprint

1450 x 950 x 1000mm

Trough Section

700 x 475 mm
(width x depth)

Capacity

200 Litres

Power Supply

415V/three phase/50Hz

Motor

3000 RPM/415V/2.2kW

Wheel Finishing

Series

Ceramic wheel polishing services and equipment supplying Australia and New Zealand. Giving automotive wheels a whole new polished look without the need for hand finishing.

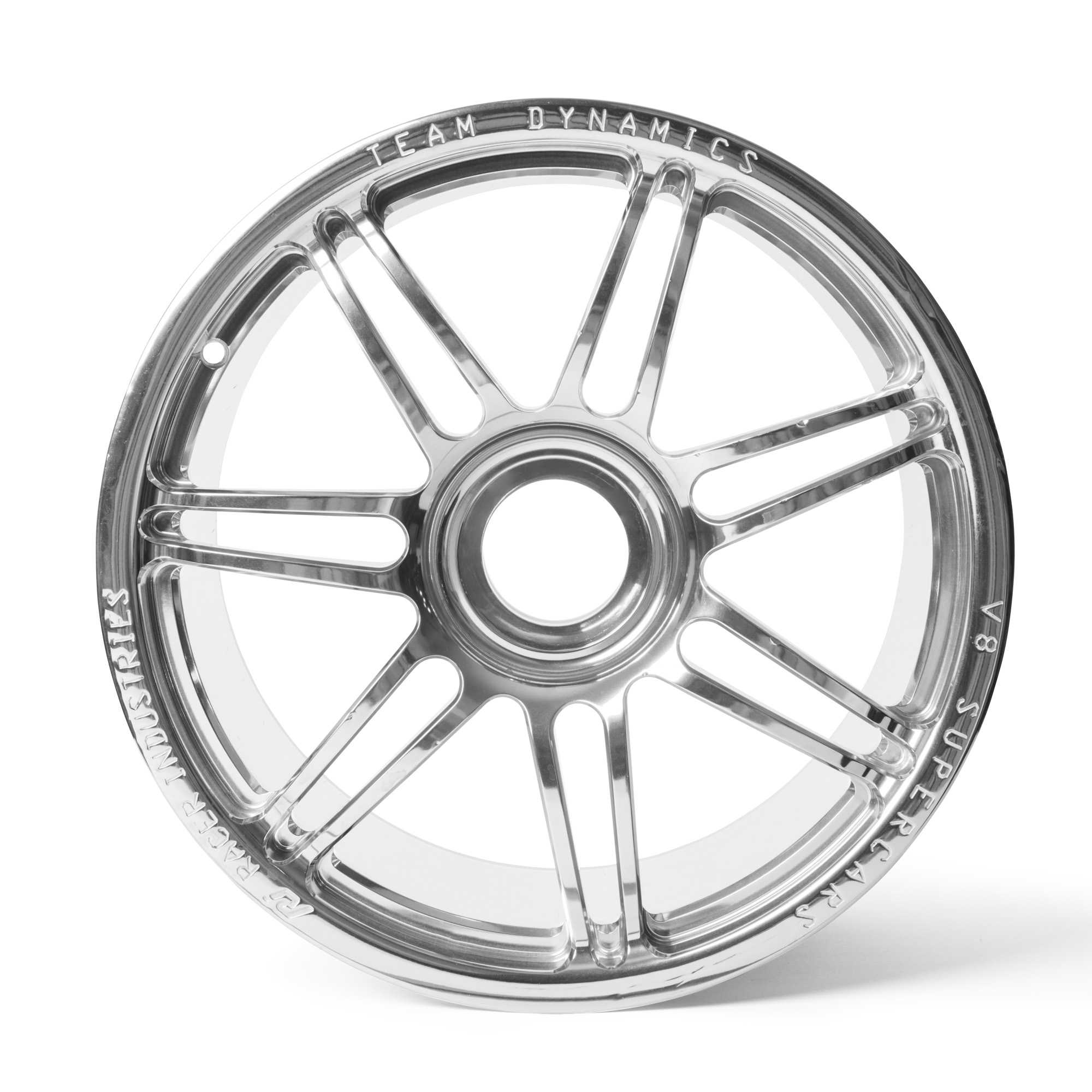

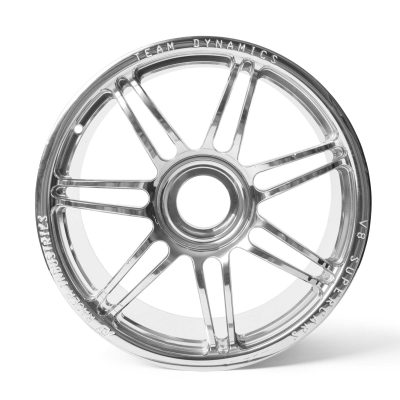

Mirror finishing for

Alloy and steel wheels up to 22 inch

Vibration technology with adjustable motor orientation for amplitude regulation

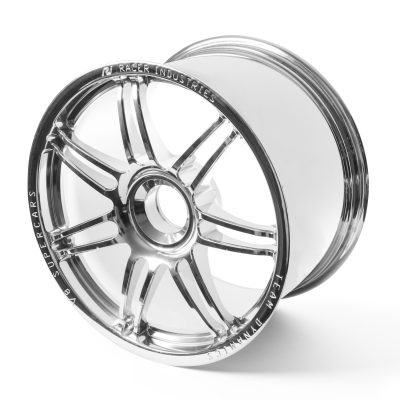

Example

Benchmark

Suited to finishing one wheel at a time. Produce highly reflective mirror finishes on automotive wheels with minimal manual input.

Email

Send us an email with a description of your application and finishing requirements

Free Sample Trials

Send some sample pieces for our free sample trials

Quote

We’ll send back a recommendation of surface finishing equipment and consumables

Supply

If the results are right, we’ll supply a finishing system along with a step by step instruction manual and a fully documented process report sheet

Get in Touch with our
Expert Team Today.

Our investment in specially built machines means that we are able to provide very effective turn around times on parts of all types.
